Features
- 28-circuit switching value input and output control (12 input/16 output), place of output port can be user-defined, convenient for customer use to the maximum limit
- With switching value test function, it is convenient for debugging of packing scale
- Adjustable working modes (six modes)
- Full-automatic three-material rapid charging control (single mode and combined mode)
- With full-panel digital calibration, input the number of millivolt by hand to complete calibration (free of weight calibration function)
- Can store twenty kinds of formulas, it is convenient for packing materials of different ranges
- With feeding control function, it is convenient for control connection between packing scale and front-end feeding equipment
- Automatic Falling-head revision function
- Multiple digital filtering function
- Batch number setting function
- Automatic zero tracking function
- Time/date function
- Optional double serial port, externally connected serial printer, computer, or the second display (as for this function, SIO expansion board shall be matched)
Apply to automatic rating packing controller in grain, chemical industry, food, building material industry, etc

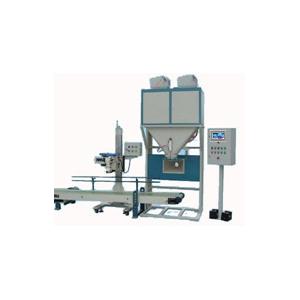

TFT-Touch Weighing Controller display Electric Double-hopper-weighing with one bag-clamping Ration Packing Scale
EMC design with high anti-jamming capability, suitable for industrial environment.
24-bit ∑-△ADC with internal resolution 1/1,000,000 and sampling frequency 400Hz.
Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
Outline Size [W×H×D]: 107 × 60 × 100 mm.
Panel Cut-out Size [W×H]: 94 × 47 mm.
Operating Temperature: -25℃～+40℃. Protection Level of Front Panel: IP65.
Accuracy Grade: III.
Verification Accuracy: 0.03%.
